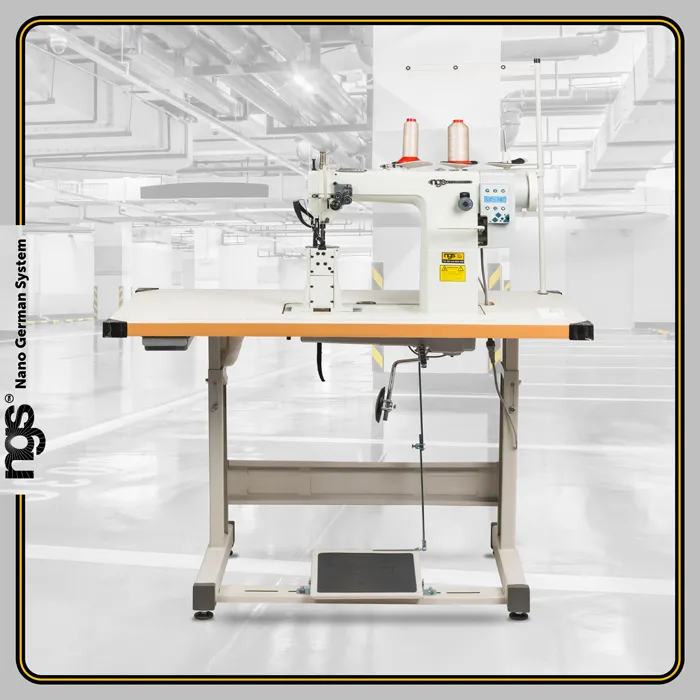

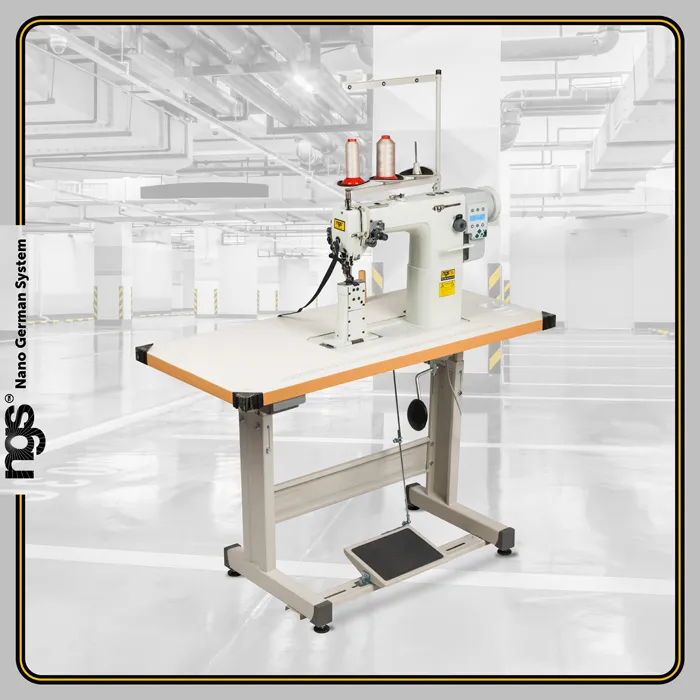

Cord stiching machine ND 820 DW

Specifications:

Power: 0.55 kW;

Voltage: 220 V/50 Hz;

Sewing speed: 200–5000 stitches/min;

Stitch length: max 4 mm;

Presser roller lift height: 9 mm;

Needle stroke: 36 mm;

Needle size: 90–120;

Tape width: 14 mm;

Cord diameter: up to 3 mm;

Needles: DPX17, 135*17;

Bobbin: 22 mm;

Standard needle spacing: 3 mm;

Machine dimensions without packaging (L×W×H): 550×1200×1260 mm;

Machine dimensions with packaging (L×W×H): 590×1230×665 mm;

Net weight: 65 kg;

Gross weight: 70 kg

Get price
  • Description
  • Video
  • Features
  • Warranty
  • Delivery

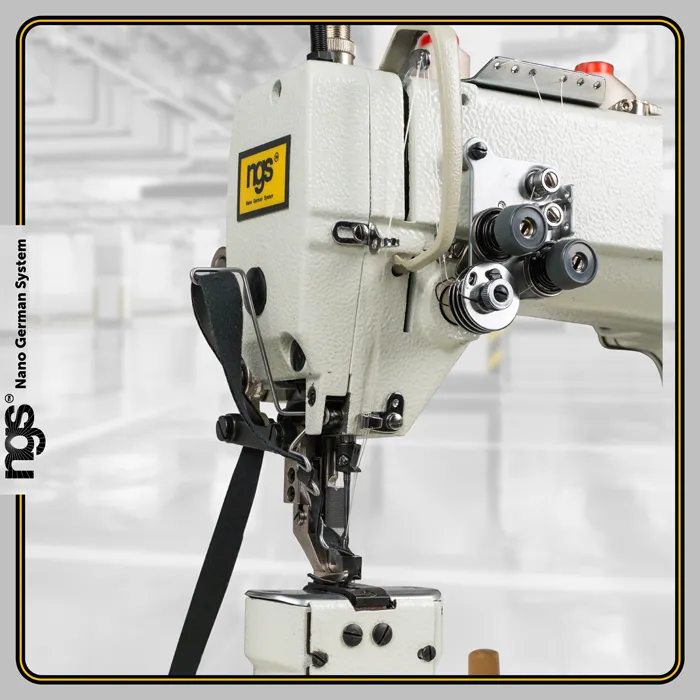

A twin-needle sewing machine with a post-bed platform is designed for stitching a welt onto the upper part of footwear by simultaneously feeding a cord with a diameter of up to 3 mm and a tape (braid) 14 mm wide. It is optimally suited for working with heavy and medium materials, including leather and eco-materials. The special feed mechanism combines needle feed, presser feet, and a bottom feed dog, which prevents the shifting of lightweight materials and ensures a straight stitch when working with dense fabrics. The reduced diameter of the post provides high maneuverability when handling complex-shaped parts.

Features:

Built-in servo motor – ensures smooth operation and reliability. The minimum and maximum motor speeds can be adjusted via a computer, as well as needle positioning.

Perfect synchronization system – guarantees stable material feed without shifting.

Increased presser roller lift height – allows for easy placement and removal of thick items.

Low-maintenance thread take-up mechanism – reduces the need for frequent adjustments.

Vertical rotary hook – capable of a full rotation around its axis and equipped with a reliable bobbin case opening mechanism.

Two types of stitches:

A stitch where the threads are completely hidden;

A stitch where only the outer stitch is visible, while the inner one remains concealed.

This model is the perfect solution for manufacturers working with footwear, leather accessories, and dense materials that require precise and durable stitching.

Power: 0.55 kW;

Voltage: 220 V/50 Hz;

Sewing speed: 200–5000 stitches/min;

Stitch length: max 4 mm;

Presser roller lift height: 9 mm;

Needle stroke: 36 mm;

Needle size: 90–120;

Tape width: 14 mm;

Cord diameter: up to 3 mm;

Needles: DPX17, 135*17;

Bobbin: 22 mm;

Standard needle spacing: 3 mm;

Machine dimensions without packaging (L×W×H): 550×1200×1260 mm;

Machine dimensions with packaging (L×W×H): 590×1230×665 mm;

Net weight: 65 kg;

Gross weight: 70 kg

Warranty conditions for the Cord stiching machine ND 820 DW are indicated in the Warranty card that you receive when you purchase.

Cord stiching machine ND 820 DW You can buy with a guarantee in NGS by making a request on the website or a specialist by phone or email. Detailed information on connecting, setting up, installing Cord stiching machine ND 820 DW in the NGS Equipment Operating Instructions.

You can buy the Cord stiching machine ND 820 DW with delivery on the website or from an NGS specialist.

We offer:

  • Shipment at own expense from a warehouse (Odessa, Kharkov, Dnipro, Lviv, Brovary) of the available equipment;
  • Delivery all over Ukraine by a transport company (optional) to any city;
  • Delivery to the CIS and European countries is carried out by the transport company selected by the Customer.

You can order the Cord stiching machine ND 820 DW from NGS with delivery to any country. The cost and delivery time Cord stiching machine ND 820 DW depends on the weight, quantity of equipment and order urgency.
