Machine for gluing thermoplastic counter RZ820
Specifications:
- Power: 1,3 kW;
- Voltage: 220 V / 50 Hz;
- Working pressure: 0.4 MPa;
- Size without packaging (LxWxH): 280x420x1480 mm;
- Size in the package (LxWxH): 320x460x1550 mm;
- Net weight: 55 kg;
- Gross weight: 68 kg.
- Description
- Features
- Warranty
- Delivery

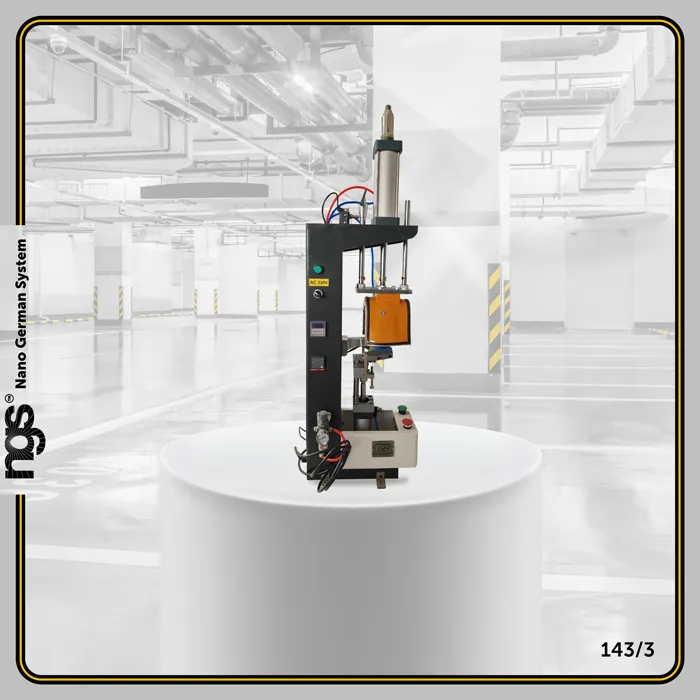

Machine for gluing thermoplastic counter RZ820 is at the assembly department.
The gluing process begins with the placement the upper of the workpiece on the punch. Then using a special pedal, the part is firmly fixed with tension in the shank part. According to the type of material, the required temperature for heating the punch is set. The adhesive base of a counter is activated with the heated punch. Due to the pressure, the air crimp lays down according to the configuration of the punch and glues the thermoplastic counter.
To perform the operation of claming the heel part you need to press a start button. After the completion of the set time, the mechanism moves to its original position.
Advantaged of the machine for gluing thermoplastic counter:
- the airbag, needed for reliable gluing the upper of the workpiece;
- simplicity in manipulation (time and tempature of heating);
- low energy consumption;
- low weight, compact size, convenient in transportation.
- Power: 1,3 kW;
- Voltage: 220 V / 50 Hz;
- Working pressure: 0.4 MPa;
- Size without packaging (LxWxH): 280x420x1480 mm;
- Size in the package (LxWxH): 320x460x1550 mm;
- Net weight: 55 kg;
- Gross weight: 68 kg.
Warranty conditions for the Machine for gluing thermoplastic counter RZ820 are indicated in the Warranty card that you receive when you purchase.
Machine for gluing thermoplastic counter RZ820 You can buy with a guarantee in NGS by making a request on the website or a specialist by phone or email. Detailed information on connecting, setting up, installing Machine for gluing thermoplastic counter RZ820 in the NGS Equipment Operating Instructions.
You can buy the Machine for gluing thermoplastic counter RZ820 with delivery on the website or from an NGS specialist.
We offer:
- Shipment at own expense from a warehouse (Odessa, Kharkov, Dnipro, Lviv, Brovary) of the available equipment;
- Delivery all over Ukraine by a transport company (optional) to any city;
- Delivery to the CIS and European countries is carried out by the transport company selected by the Customer.
You can order the Machine for gluing thermoplastic counter RZ820 from NGS with delivery to any country. The cost and delivery time Machine for gluing thermoplastic counter RZ820 depends on the weight, quantity of equipment and order urgency.
